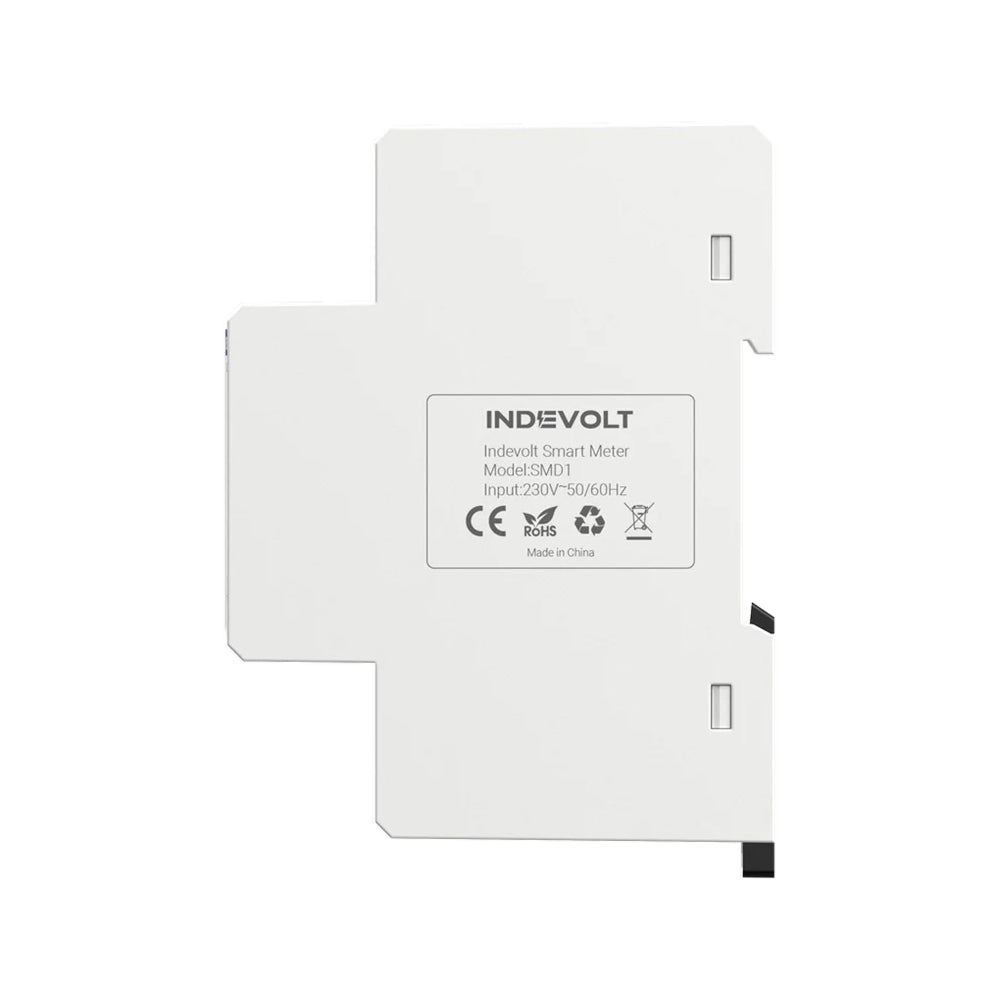

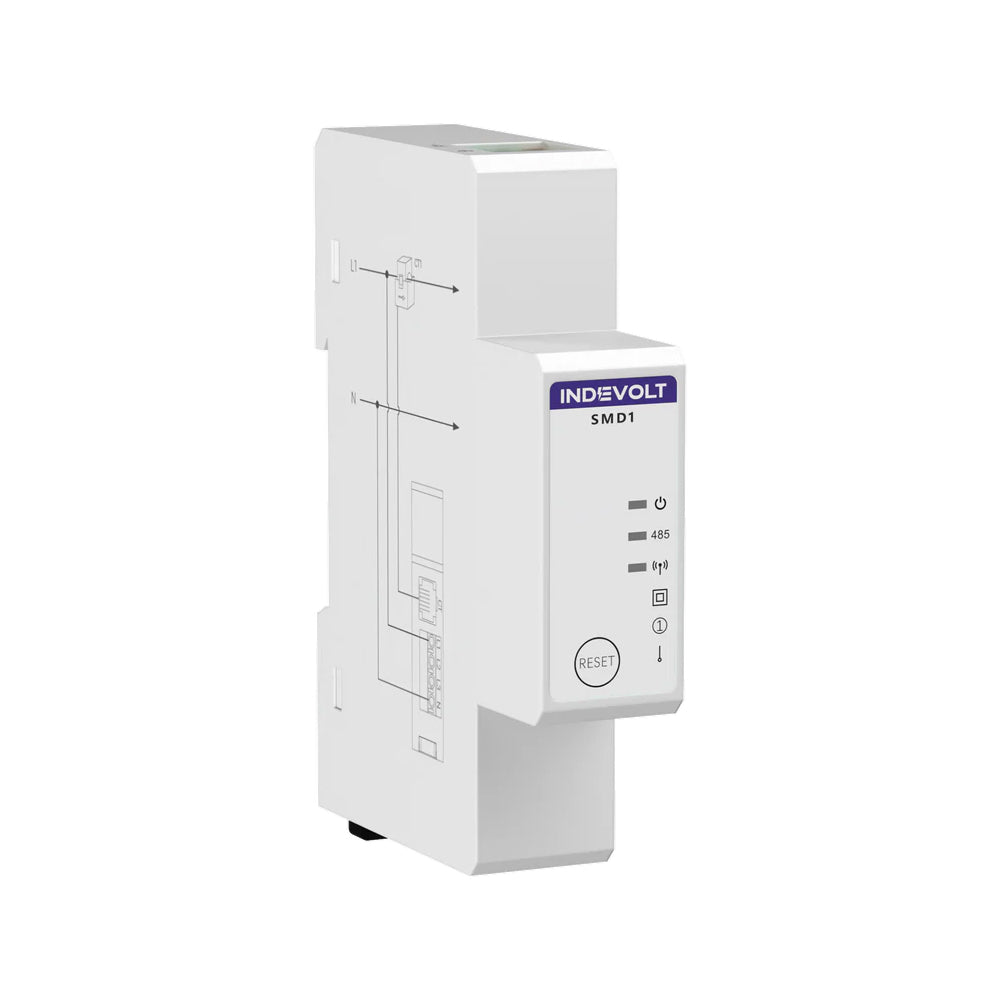

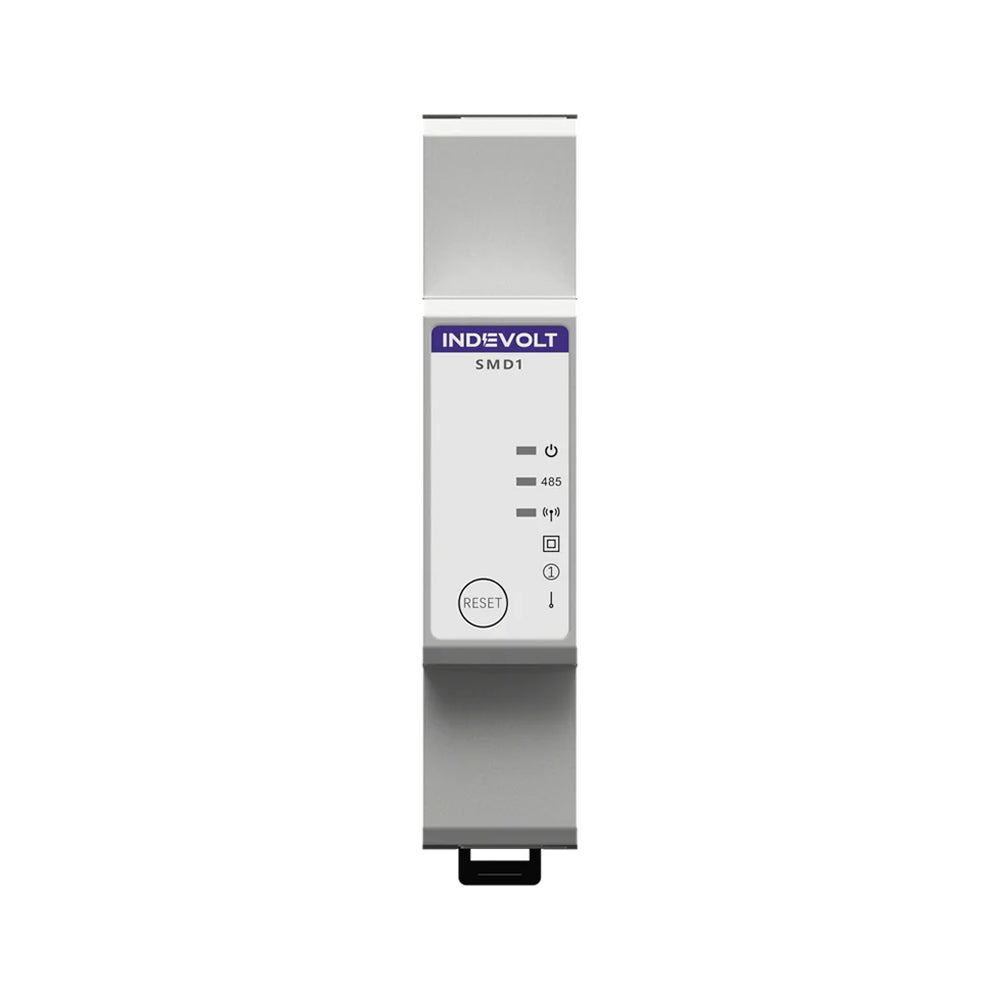

Indevolt Smart Meter

£99.00

Pre‑order notice: The earliest estimated dispatch date is 31 October. Orders will be shipped in the order they are received. We’ll notify you promptly of any changes.

Note: Indevolt Smart Meter requires an Indevolt plug-in home battery – it does not function as a standalone device.
Energy Consumption Monitoring: Real‑time usage tracking with 1‑W precision for on‑demand discharge.

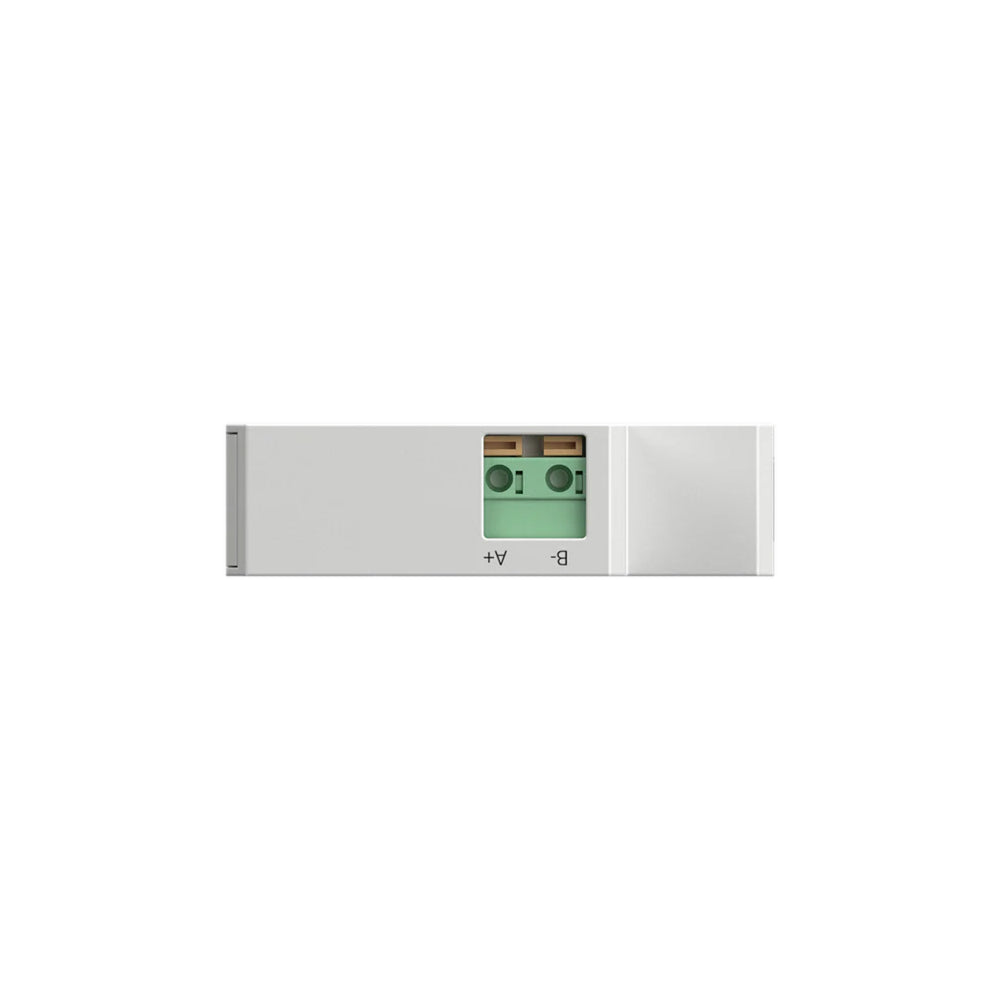

Flexible Connectivity: Supports communication via Wi‑Fi and RS485.
Smart App Control: Visualise data and adjust settings in real time.
PV Data Monitoring: Real‑time power and energy data from third‑party PV systems.

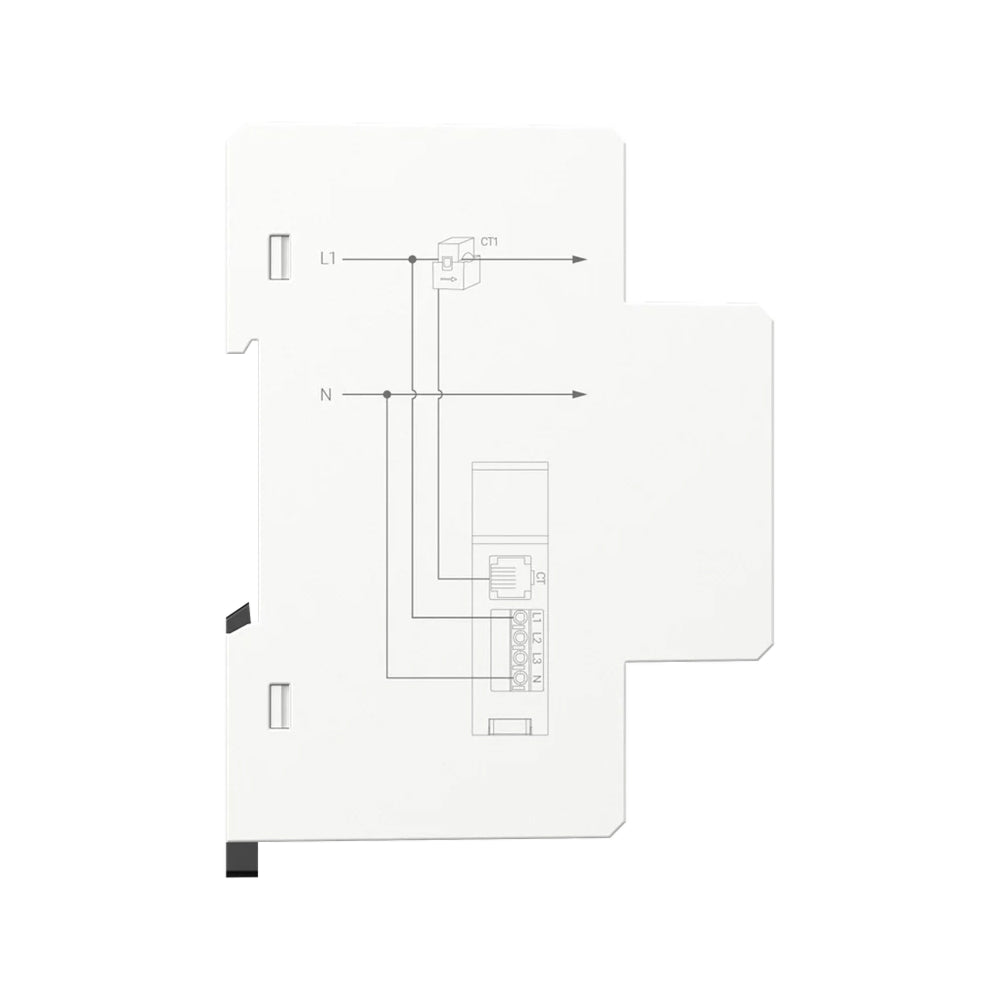

Dual‑Circuit Monitoring: One channel for the main household circuit, the other for PV or independent storage monitoring.

Overview

Gift

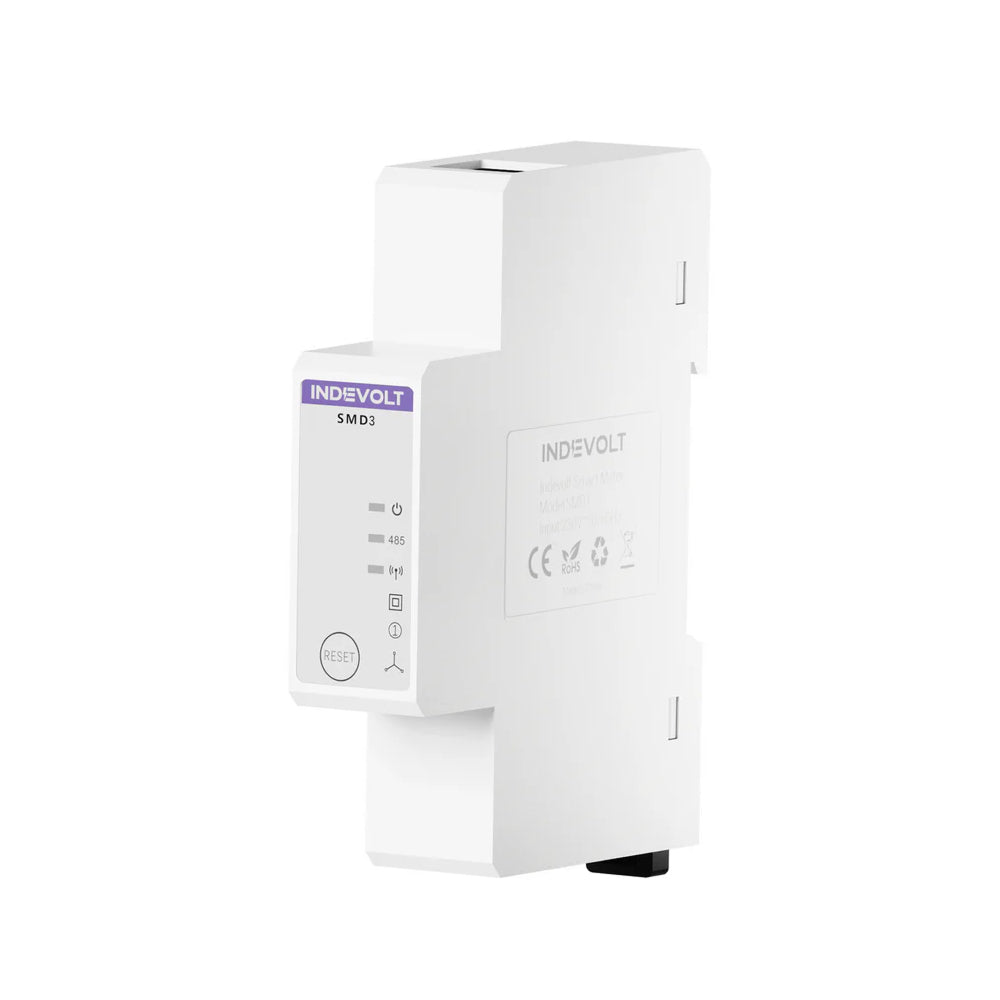

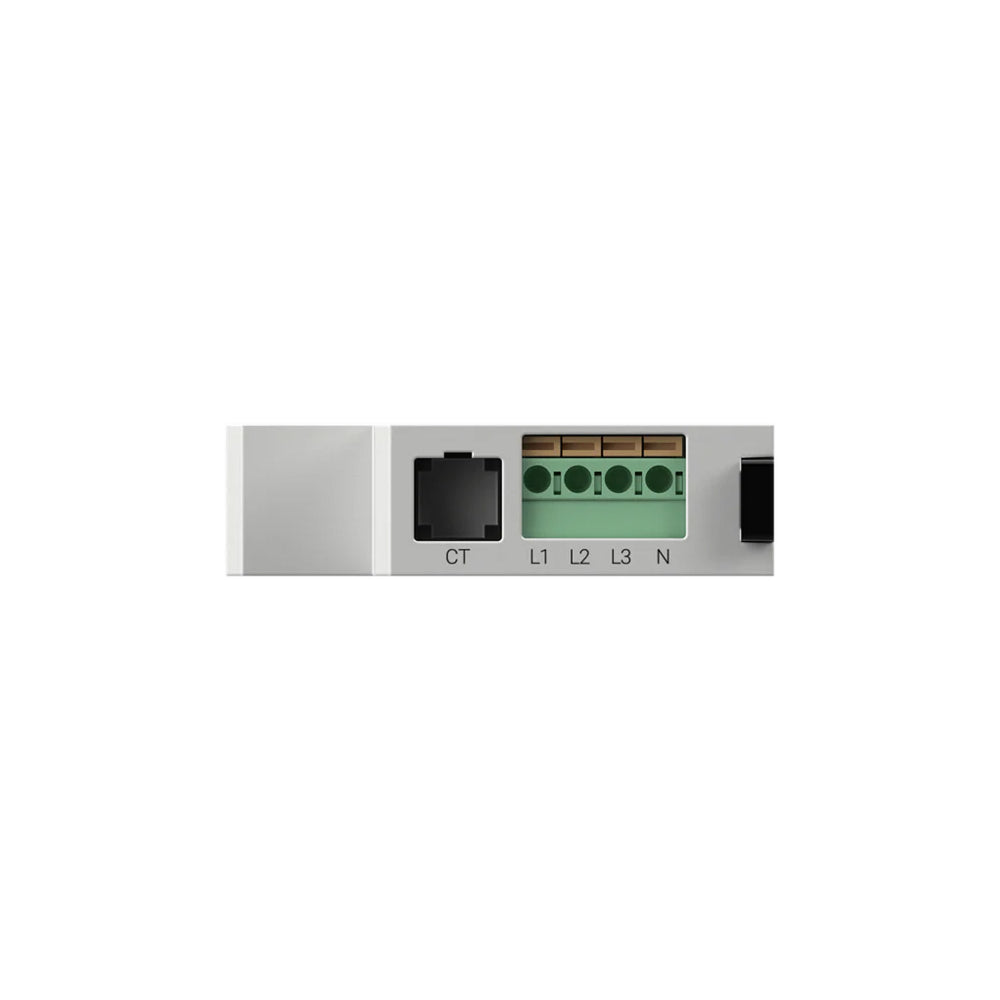

Indevolt Smart Meter SMD3

£0.00 £99.00

Maybe you also need

[Pre-Sale] Indevolt PFA4000 Expansion Battery

£1,099.00

30-Day Return Policy
10-Year Warranty
Free and Fast Shipping
Lifetime Customer Support
30-Day Price Guarantee

Convenient Payment
Reliable Delivery

Overview

Features

Package

Parameter

FAQ

£673

Maximum annual savings

3.7

Years Payback period

PowerFlex 3000 Hybrid + 1 × PFA4000 expansion battery (6kWh) + 2000W PV modules

£0/Year

Microinverter + 2000W PV modules

£0/Year

*Self-consumption rate increased from 40% to 90% – with 2360kWh solar yield per year (£0.26/kWh).

Performance without Limits

Feed up to 800W into your home grid and start lowering your electricity costs from day one. The integrated 3000W off-grid socket reliably supplies even high-powered devices with backup power when needed – giving you more independence in everyday life. This way, you make the most of every ray of sunlight.

Always Reliably Connected

Connect your system directly via cable for constant, lightning-fast data transmission and ultimate stability, guaranteeing maximum reliability without any Wi-Fi fluctuations or signal drops.

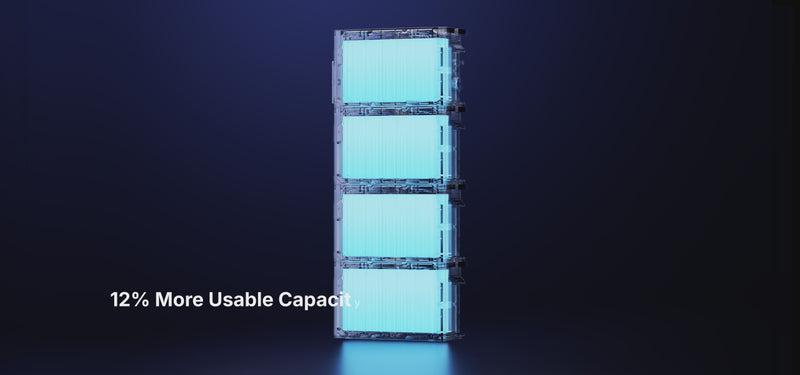

BatteryFlex Technology

Thanks to the flexible expansion capability, you can seamlessly combine batteries with different capacities – even mix new ones with older ones. Each battery fully utilizes its energy, ensuring that the entire available capacity of your system is optimally used. For maximum safety, automatic fault isolation ensures that if a battery error occurs, it is immediately isolated. Thanks to the 0V shutdown, there is absolutely no risk of electric shock.

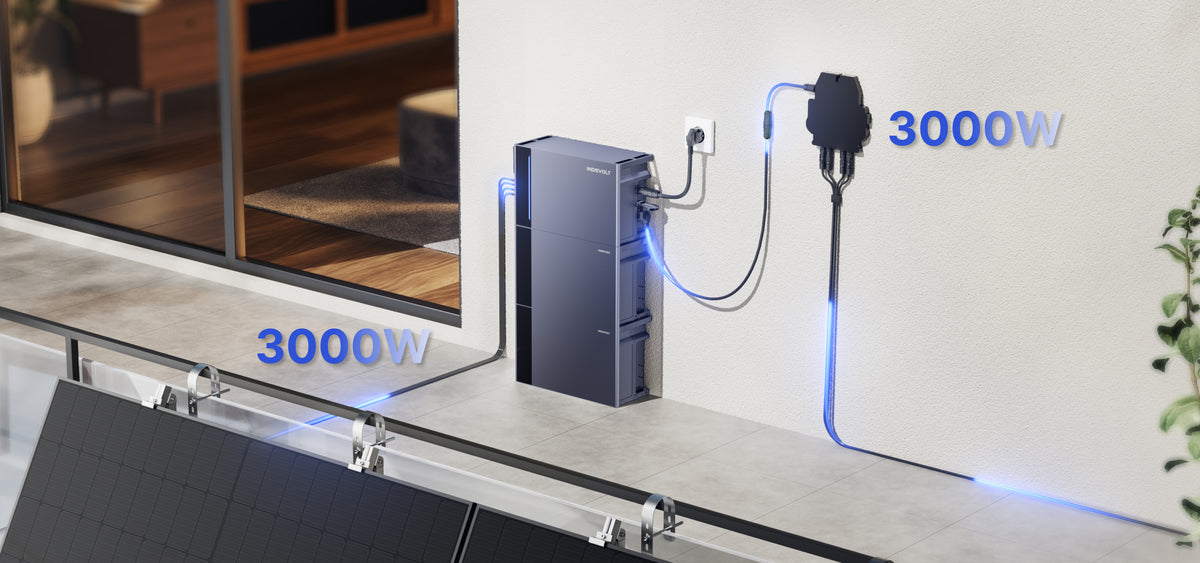

Store More PV Energy

The device supports up to 3000 W DC‑PV input and 3000 W AC‑coupled charging simultaneously. Combined, they deliver a maximum battery‑charging power of 6000 W to make full use of photovoltaic power generation.

Note: Limited by the 0.5C battery charging rate. To achieve the maximum 6000 W charging power, the total battery capacity of the whole energy‑storage system must be at least 12 kWh. If the battery capacity is insufficient, the actual charging power will be restricted by the battery rate and cannot reach 6000 W.

Technologie GaN & High-capacity Cells

By using advanced GaN power semiconductors, the system takes energy conversion to a new level. It noticeably minimizes operating losses and ensures highly efficient energy utilization during charging and discharging. More power for your home, less loss.

Maximum Flexibility: the Open Ecosystem

Smart Home Ready

Open API for seamless smart home integration – enabling intelligent energy management.

Officially Home Assistant certified at Platinum level – with local polling for cloud‑free control.

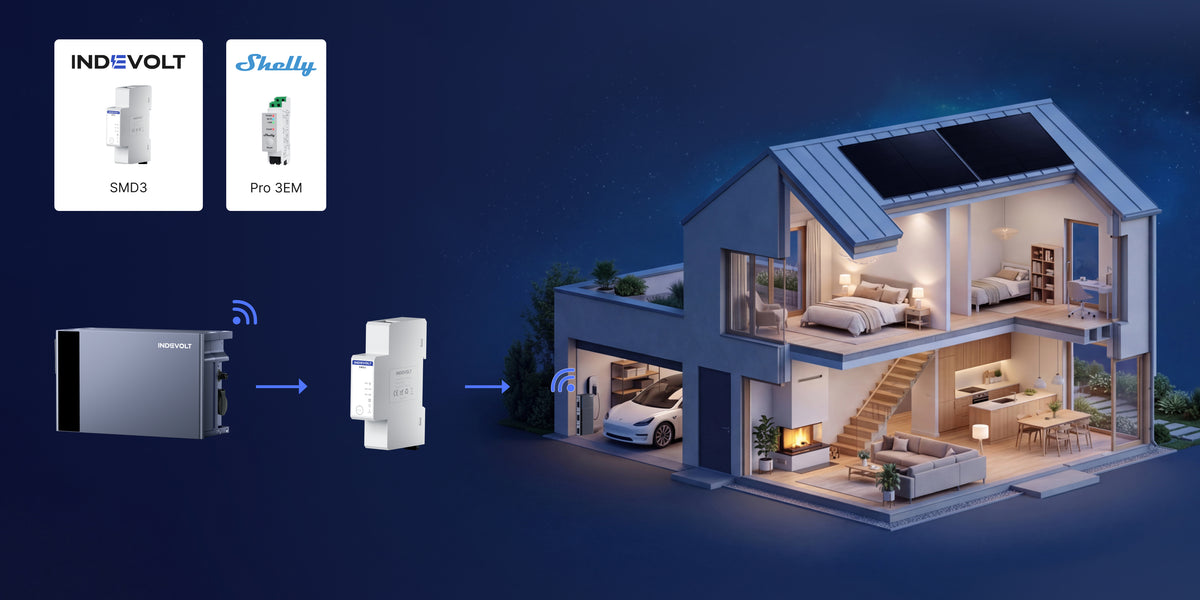

Compatible with standard smart meters

Indevolt integrates seamlessly into all leading smart meter systems. Monitor your electricity consumption and solar generation in real time, avoid unnecessary grid feed-in, and maximize your self-consumption.

Open for your PV system

Indevolt speaks the language of your PV system. Via API integration, all generation data flows directly into your dashboard. For full transparency and a smarter home.

Smart Control for Dynamic Tariffs

By analyzing your consumption and the PV forecast, the system adapts accordingly. It uses dynamic electricity prices to fully automatically charge or discharge the batteries at the optimal time.

Fully Protected – from the Cell to the System

Each storage unit houses two cells. The BMS monitors temperature, voltage, and other critical parameters in real time, while continuous data analysis ensures the system runs with peak safety and stability.

Energy storage module enclosures crafted from premium aluminum alloy, delivering a robust, deformation-tolerant shield and superior fire protection for the core components.

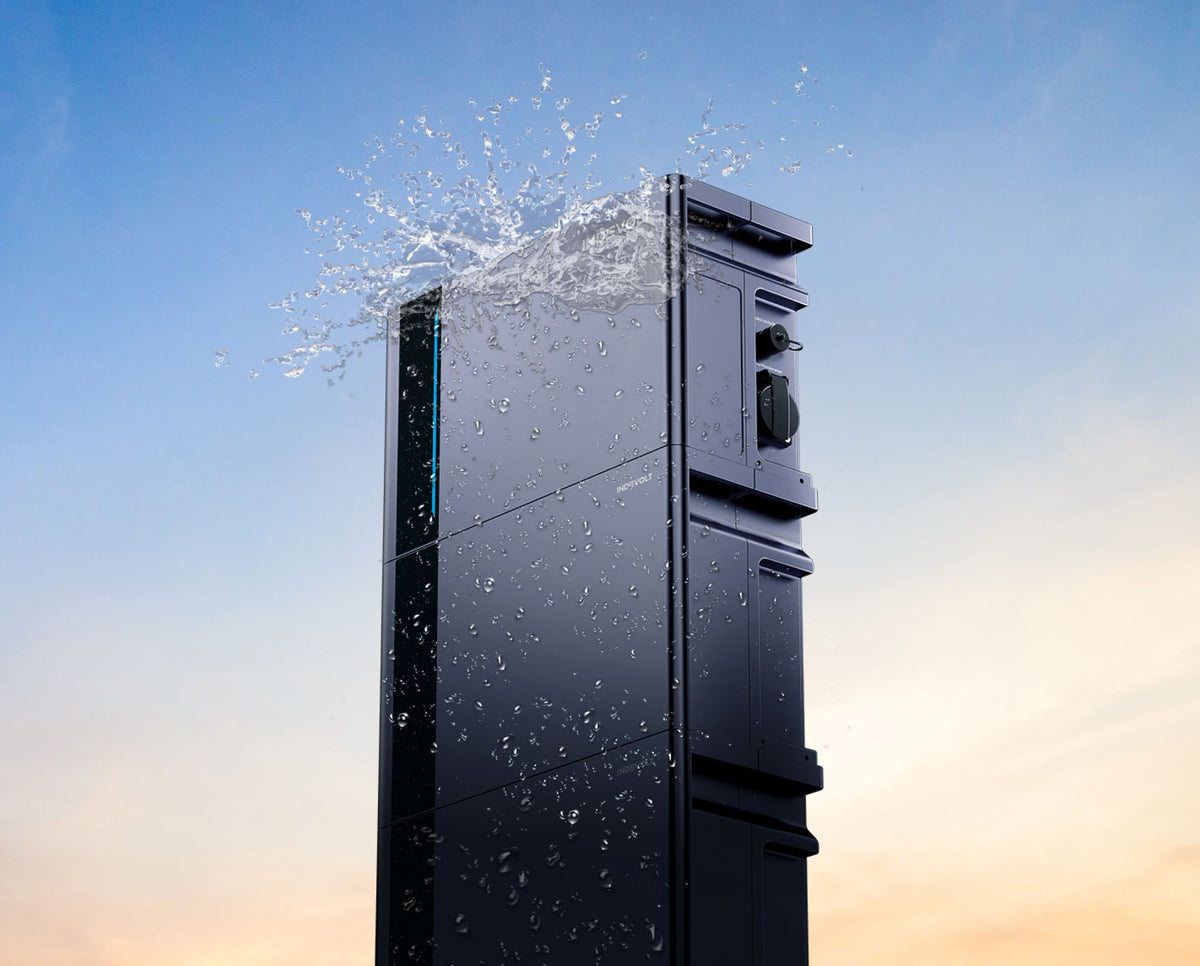

Superior dust and water protection guards core components against outdoor dust and rain, for lasting reliability in challenging conditions.

Everything at Your Fingertips – the Indevolt App

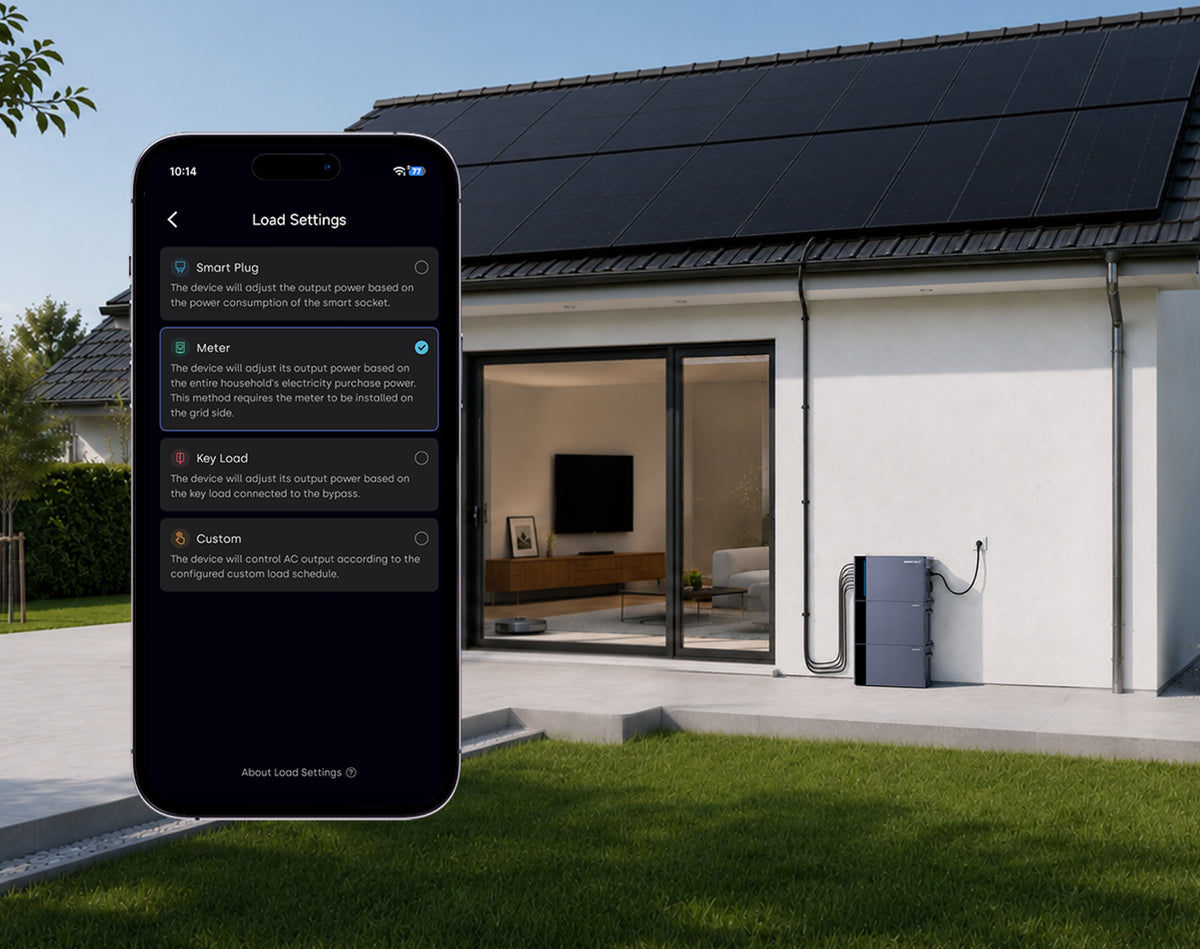

The Indevolt App offers you various operating modes that precisely tailor the power to your household's energy needs. This way, your electricity bill is reduced to a maximum extent.

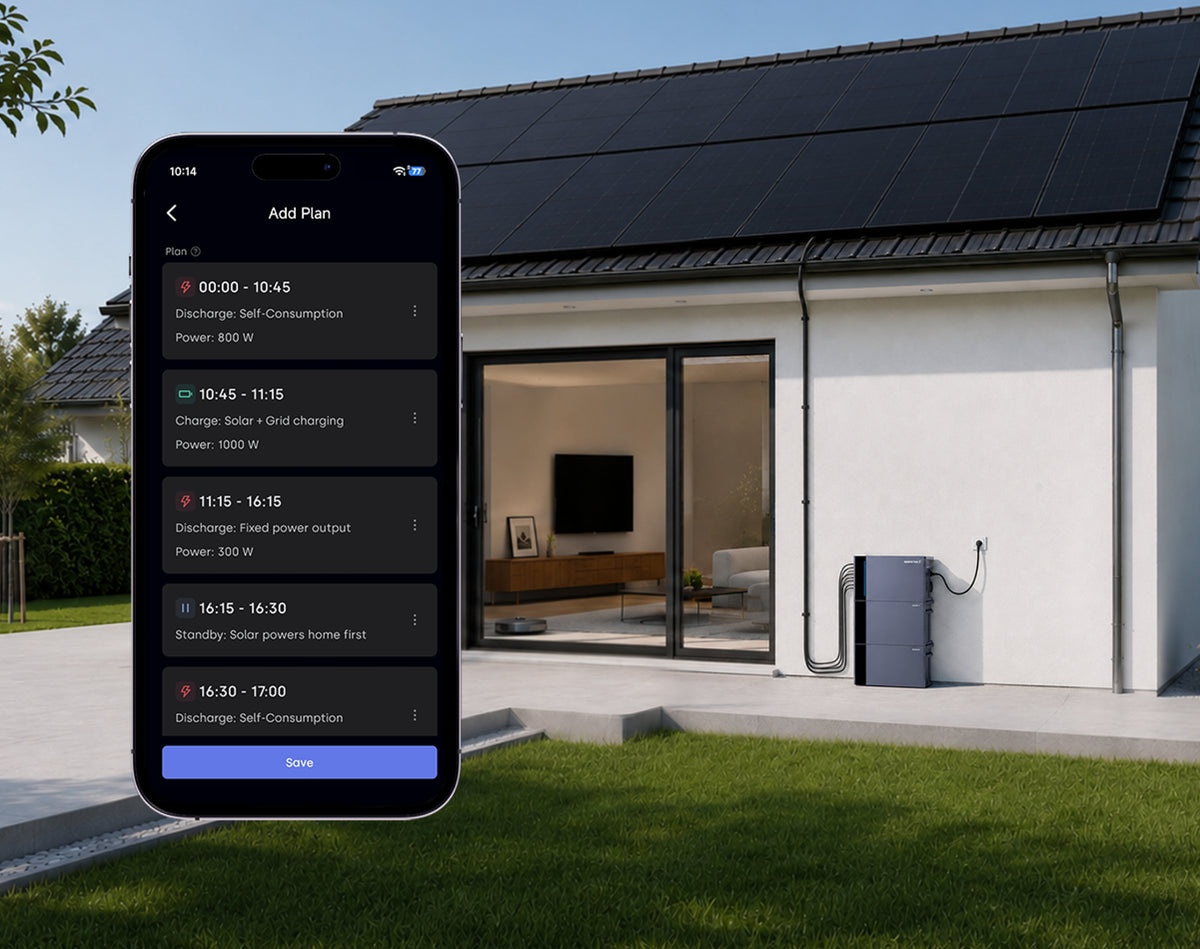

You have full control: Plan your charging and discharging times as well as the operating strategy of your devices exactly the way you want. Experience flexible and intelligent energy management that adapts perfectly to your daily routine.

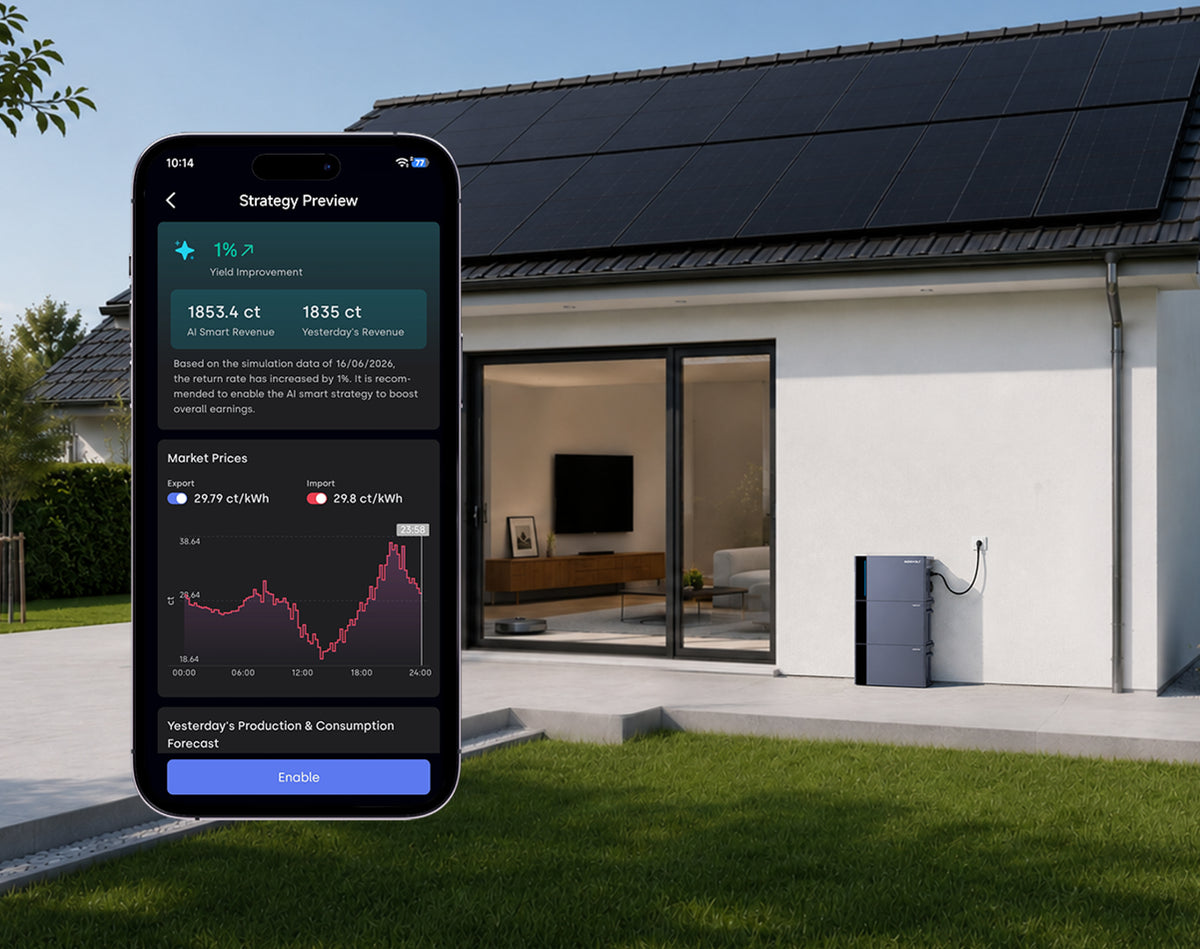

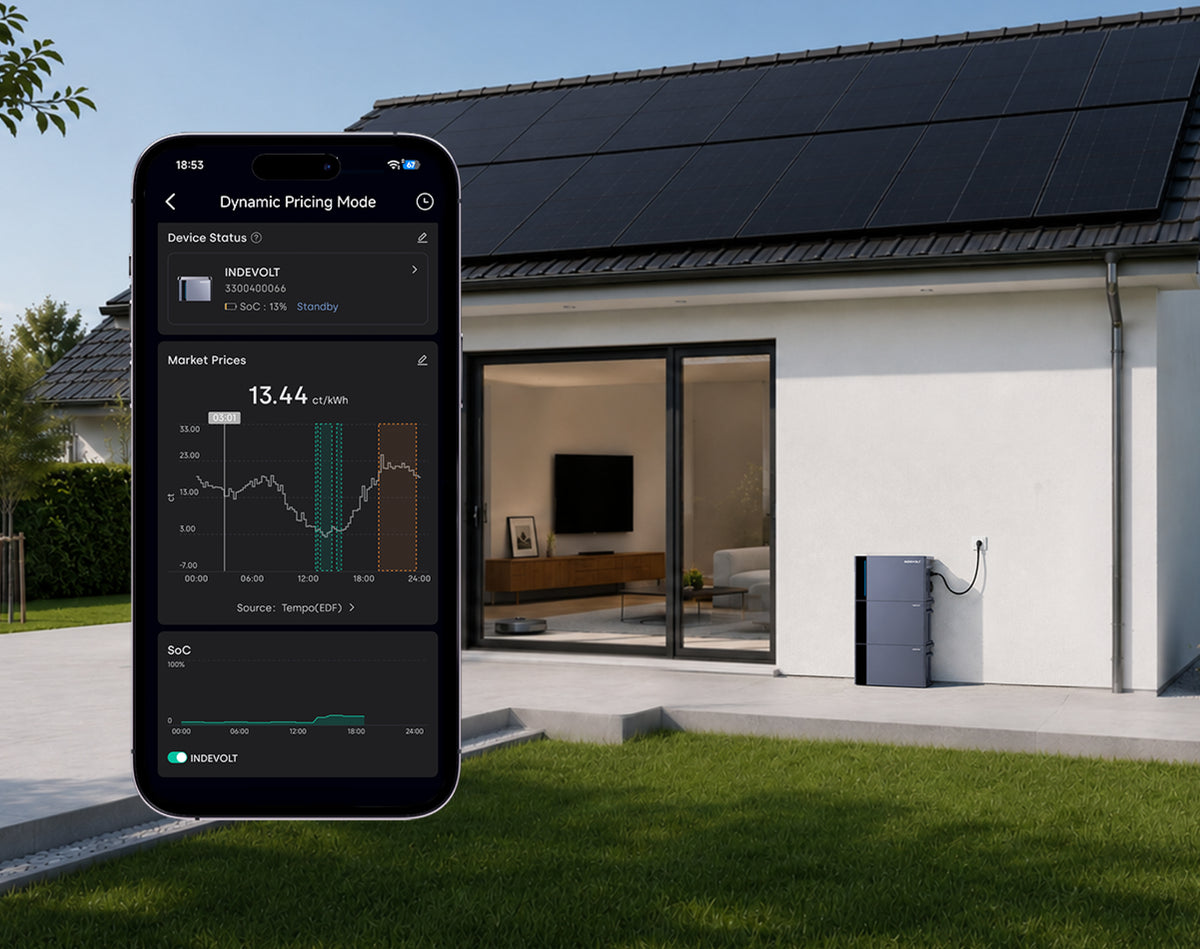

The Indevolt system synchronizes in real time with the prices of leading European electricity markets. An intelligent algorithm fully automatically plans your charging and discharging cycles: charging when prices are low, discharging when prices are high. This automated peak arbitrage mechanism ensures that your home storage system always operates in the most economically optimal range – for maximum reduction of your electricity costs.

Intelligent and forward-looking: Based on your individual consumption habits, the system predicts solar power generation in advance. Combined with dynamic electricity prices, the charging and discharging of the battery is fully automated.

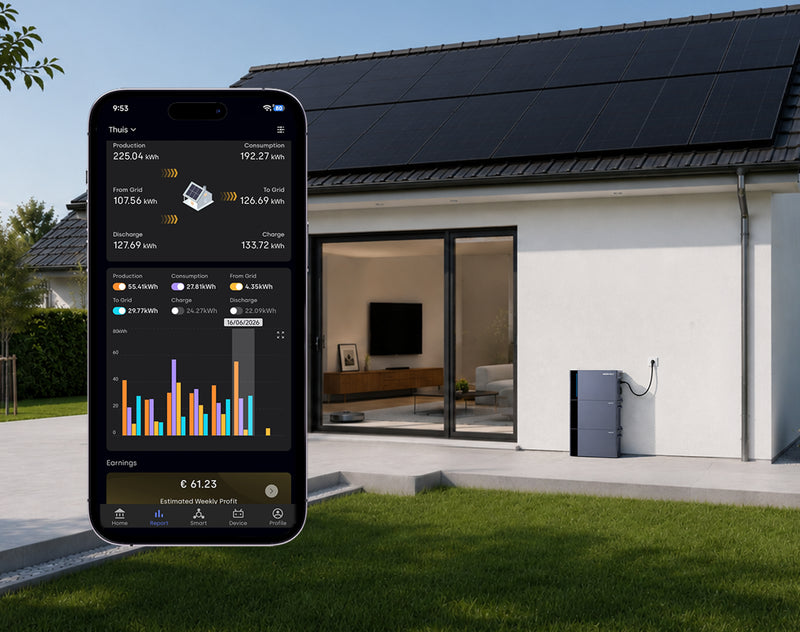

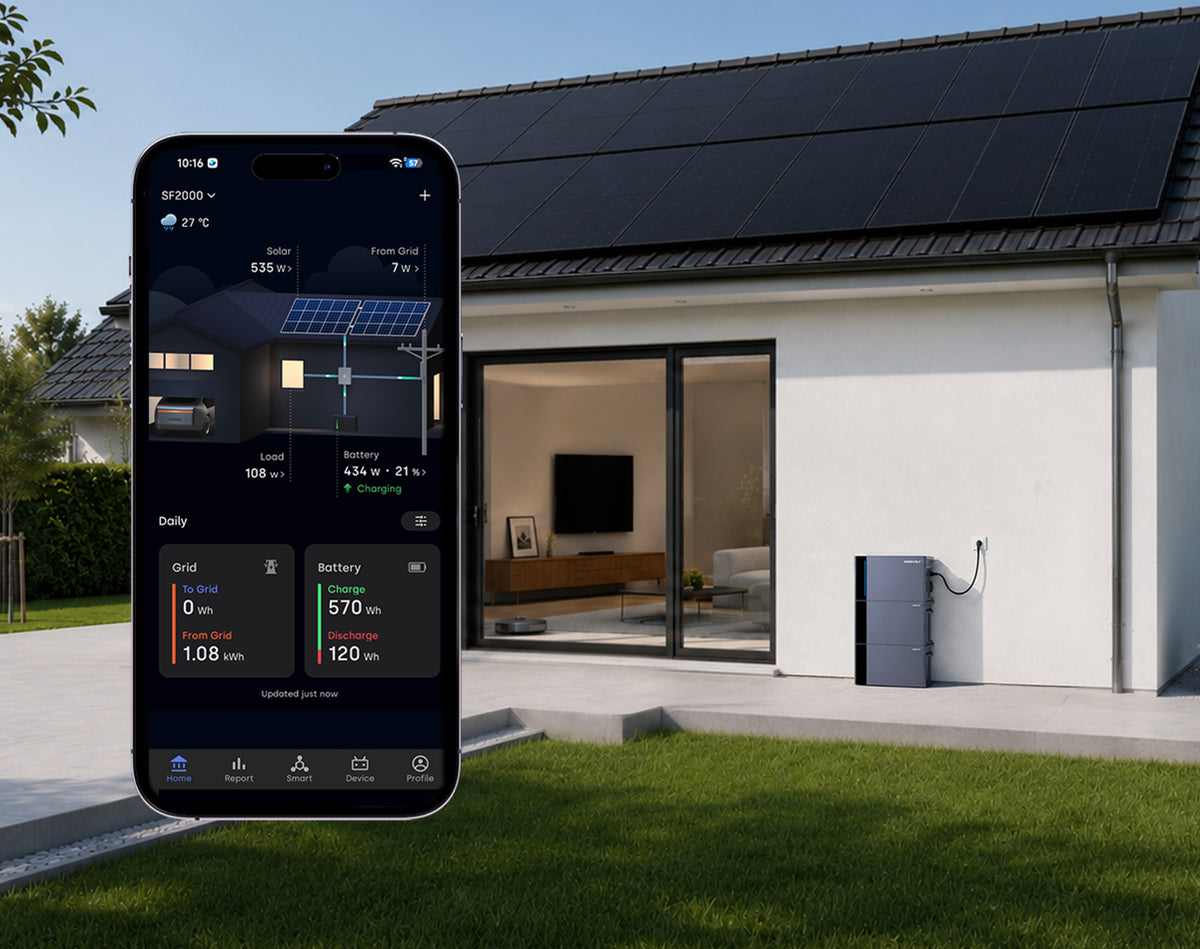

With Indevolt, you always have your balcony power plant firmly under control. Directly on the dashboard, you can see all the important real-time data of your current power generation at a glance. Track the complete energy balance – from generation to storage and distribution to consumption – absolutely clearly and intuitively. Everything under control, anytime, anywhere.

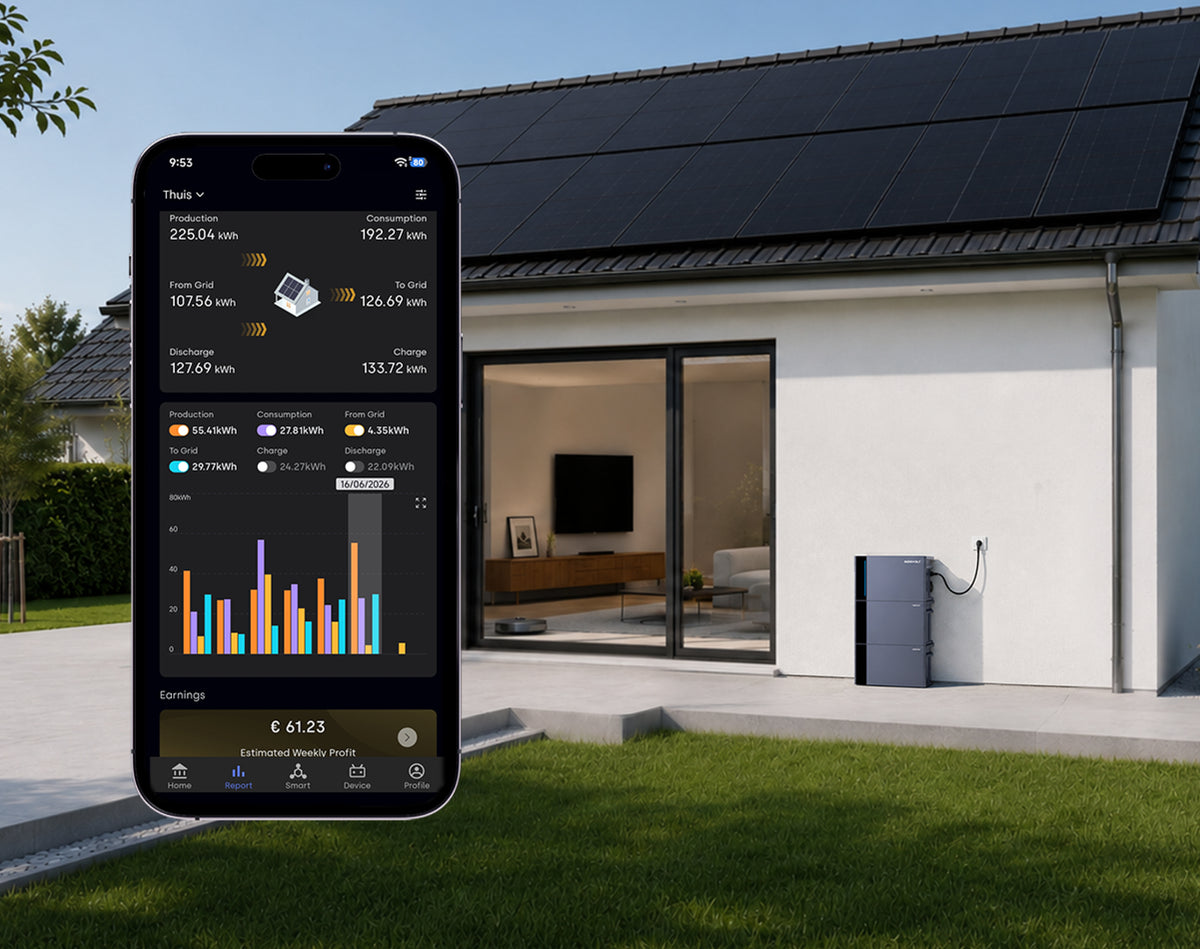

The Indevolt App provides you with detailed statistics and clear dashboards. See at a glance when your PV system generates the most power, track historical generation and consumption data, and find out exactly how much money you've already saved. This helps you make informed decisions, optimize your energy usage, and maximize your returns.

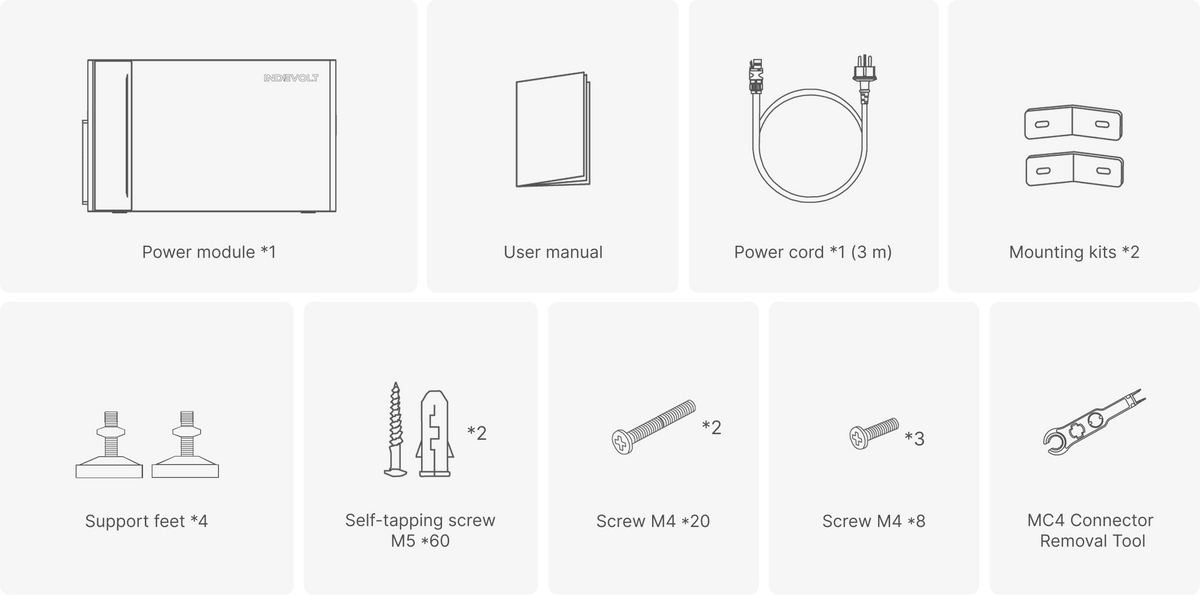

Package Content

Specifications

Maximum PV input power3000W (4 MPPT, each 750W)
Operating voltage11-60V DC
Life cycle10000
Battery typeLiFePO₄ battery
Capacity2 kWh (expandable to 22 kWh)
Number of parallel expansions3 groups
Capacity of parallel expansions66 kWh
Net weight22 KG
Max. AC continuous output power3000W (with extra batteries)
Max. AC continuous output current13A AC
Max. AC continuous input power3000W (with extra batteries)
Max. AC continuous input current13A AC
Dimensions425×195×260 mm
Operating temperature-20°C to 55°C
Warranty10 years
Service life15 years
ConnectivityWiFi (2.4/5GHz), Bluetooth, LoRa, LAN (RJ45), RS485
Protection classIP65
App-integrated microinvertersDeye
FusionSolar
GOODWE
GROWATT
SolarEdge
SolaX
VaySunic
Solis
Sungrow
Solplanet
Third-party compatibilityShelly Pro 3EM-3CT63
Shelly 3EM
Shelly Pro 3EM-400
Shelly Pro EM-50
Shelly Plug
Shelly Plug S Gen3
everHome EcoTracker IR
Solarman Meter
Solarman IR Reader
stromleser.one
Homewizard P1

Downloads

PowerFlex 3000 HybridUser manual 2026-07-09

FAQS

FAQ

Show all

Wurden keine Ergebnisse gefunden.

Überprüfen Sie die Rechtschreibung oder verwenden Sie ein anderes Wort oder eine andere Phrase.

Calculation & Disclaimers

Configuration: PowerFlex 3000 hybrid host + PFA4000 expansion battery + 4 × 500W photovoltaic modules Total battery capacity: 6kWh | AC output: 3000W | Complete system price: £2498

UK Installation Conditions

Photovoltaic panels facing south, tilt angle 30°–35°, estimated annual equivalent full-load hours: 1180h

Annual PV generation: 1180h × 2000W = 2360kWh
Household annual electricity consumption: 4400kWh
AI time-of-use price arbitrage revenue: Peak-to-off-peak price difference approximately £0.10/kWh
Self-consumption rate: 90%
Average grid electricity price: £0.26/kWh
System round-trip efficiency: 85%

Carbon Reduction

Each 1kWh of solar generation reduces carbon dioxide emissions by approximately 0.997kg

Annual CO₂ reduction: 2360kWh × 0.997 ≈ 2353kg

Annual Revenue Calculation

Annual revenue=2360 kWh×85%×90%×£0.26+(4400−2360) kWh×£0.10=£673Annual revenue=2360 kWh×85%×90%×£0.26+(4400−2360) kWh×£0.10=£673

Based on total system investment of £2498, the theoretical payback period under these assumed conditions is approximately 3.7 years.

Installation Requirements (UK)

The PowerFlex 3000 hybrid paired with energy storage battery modules falls under notifiable electrical installation works under UK Building Regulations Part P.

1. Installation personnel must hold Part P certification and be registered with an accredited body (NICEIC, NAPIT, etc.)

2. Grid connection notification must be completed following the G98 procedure Hard-wired connection to the distribution board is required; reliance on standard socket outlets alone is prohibited

3. The product hardware supports plug-and-play installation with accompanying AC cables. Official installation guidance will be updated once UK plug-and-play solar storage regulations and BSI standards are formally established.

Disclaimer

Generation volume, economic returns, and carbon reduction figures are theoretical calculations under ideal conditions.

Actual results may vary based on geographical location, solar irradiance conditions, user consumption patterns, electricity price fluctuations, and on-site installation conditions.

These calculations do not include taxes, professional installation fees, or grid connection charges. This data does not constitute a revenue guarantee.
